How to Use Tunnel Furnace

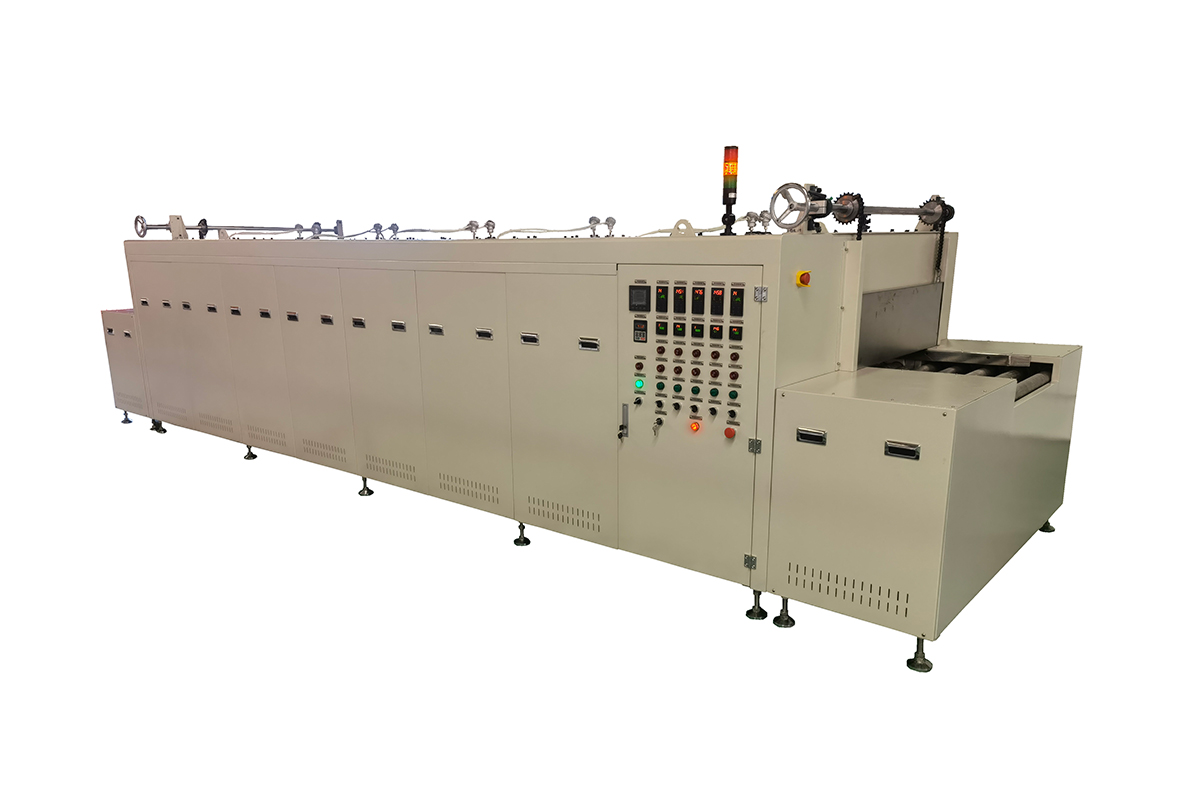

A Tunnel Furnace is a vital piece of industrial equipment used in various manufacturing processes, including metal treatment, electronics, and food processing. Unlike conventional batch Ovens, tunnel furnaces operate continuously, allowing materials to move through a heated tunnel on a conveyor system. If you are wondering what is a tunnel furnace?, it is essentially a long, enclosed heating system designed for high efficiency, uniform heating, and large-scale production.

Types of Tunnel Furnace

Tunnel furnaces come in many types to suit specific industrial needs:

1. High Temperature Tunnel Furnace – Designed to reach very high temperatures, these furnaces are ideal for metal heat treatment, steel strip processing, and other applications requiring intense thermal energy.

2. Hot Air Circulation Tunnel Furnace – Uses circulated hot air to ensure even temperature distribution. This type is widely used in curing processes and coating applications.

3. IR Infrared Furnace – Uses infrared radiation for rapid and precise heating, perfect for electronics, automotive, and delicate material processing.

4. Steam Heating Tunnel Furnace – Employs steam as the heating medium, suitable for chemical, food, and pharmaceutical industries that require moisture-controlled heating.

5. Gas Heated Tunnel Furnace – Uses gas as the energy source, offering fast heating, high efficiency, and reduced energy costs.

6. Multi-Layer Conveyor Tunnel Furnace – Features multiple conveyor layers to increase throughput, ideal for high-volume production lines.

7. Clean Tunnel Furnace – Specially designed for industries with strict cleanliness requirements, such as the semiconductor industry, ensuring contamination-free processing.

8. Curing Furnace & Atmosphere Furnace – Used for curing coatings or treating metals under controlled atmospheres, ensuring material quality and consistency.

9. Roller Furnace, Steel Strip Furnace, Mesh Belt Furnace – Specialized tunnel furnaces designed for particular applications, such as rolling steel strips, handling mesh materials, or transporting heavy products on Roller Conveyors.

How to Use Tunnel Furnace

Using a tunnel furnace correctly is crucial to ensure safety, efficiency, and optimal processing results. Here are key steps and considerations:

1. Preparation

• Before starting, check all components of the furnace, including conveyor belts, heating elements, and temperature sensors.

• Make sure the tunnel furnace is clean and free from debris. For sensitive industries, such as semiconductors, using a clean tunnel furnace in semiconductor industry is essential.

2. Loading Materials

• Place materials evenly on the conveyor or rollers.

• For multi-layer conveyor tunnel furnace, ensure proper spacing between layers to allow uniform heat penetration.

• Use protective gear if handling hot or hazardous materials.

3. Setting Temperature

• Adjust the temperature according to the process requirements. Use the control panel to select the heating method: hot air, infrared, steam, or gas.

• For curing processes, select the curing furnace settings to ensure proper polymerization of coatings.

• For metal heat treatment, use high temperature tunnel furnace settings to achieve the required mechanical properties.

4. Operating the Furnace

• Start the conveyor system, ensuring smooth movement of materials through the heated zone.

• Monitor temperature, conveyor speed, and furnace atmosphere throughout the process.

• For precision heating, the IR infrared furnace or hot air circulation tunnel furnace offers excellent uniformity.

5. Unloading Materials

• Once the materials exit the furnace, allow them to cool if necessary.

• Use proper handling equipment for heavy items, especially when working with steel strip furnace, roller furnace, or mesh belt furnace setups.

6. Cleaning and Maintenance

• Regularly clean the furnace to maintain efficiency and product quality. Use recommended procedures for a clean tunnel furnace, particularly in industries like semiconductor manufacturing.

• Check heating elements, fans, and conveyors for wear and tear.

• Schedule professional maintenance with the tunnel furnace manufacturer to ensure long-term reliability.

Applications of Tunnel Furnace

Tunnel furnaces are versatile and used in multiple industries:

• Transformer and Motor Industry – Using tunnel furnace for transformer and motor industry, insulation materials, coils, and components are cured or heat-treated with precision.

• Semiconductor Industry – Clean tunnel furnaces ensure contamination-free processing of wafers and electronic components.

• Metal Industry – Steel strip furnace and roller furnace handle large volumes of metal, performing annealing, hardening, and tempering.

• Coating Industry – Curing furnace or hot air circulation tunnel furnace ensures uniform drying and curing of paints, adhesives, and coatings.

• Food and Chemical Industries – Steam and gas-heated furnaces offer controlled heating for food processing, drying, and chemical reactions.

Benefits of Using Tunnel Furnace

• High Efficiency – Continuous operation allows large-scale production with minimal downtime.

• Uniform Heating – Advanced designs like hot air circulation and infrared heating ensure even temperature distribution.

• Versatility – Multiple heating methods and configurations (steam, gas, IR) cater to different industrial needs.

• Automation & Safety – Modern tunnel furnaces are equipped with automated controls, temperature monitoring, and safety mechanisms.

• Clean Processing – Clean tunnel furnaces ensure contamination-free results for sensitive industries.

Understanding what is a tunnel furnace? and how to use tunnel furnace correctly is crucial for maximizing efficiency, safety, and product quality in industrial operations. Whether it’s a high temperature tunnel furnace, hot air circulation tunnel furnace, IR infrared furnace, or a multi-layer conveyor tunnel furnace, each type has its unique application. Proper loading, temperature control, operation, and cleaning are essential steps to maintain performance. Industries such as semiconductor manufacturing, transformer and motor production, and metal processing rely on these specialized furnaces to ensure precise, consistent, and high-quality results.
